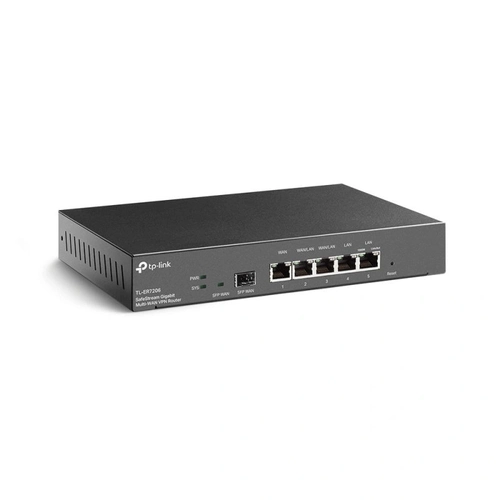

{"especificacao":"O roteador TL-ER7206 foi desenvolvido com gerenciamento centralizado, com acesso \u00e1 nuvem e ao aplicativo Omada para uma ultra conveni\u00eancia e f\u00e1cil gerenciamento. Com portas SFP de 1 Gigabit e portas RJ45 de 5 Gigabit que fornecem conectividade com fio de alta velocidade, al\u00e9m de at\u00e9 4 portas WAN. Omada cria uma rede altamente ordenada, sendo tudo controlado a partir de uma \u00fanica interface, ideais para uso em hospitalidade, educa\u00e7\u00e3o, varejo, escrit\u00f3rios entro outros. Com grandes recursos de seguran\u00e7a para proteger sua rede e dados.
\r\n
\r\n
\r\n
\r\n*Imagens meramente ilustrativas.","descricao":"- Marca: TP Link
\r\n
\r\n- Modelo: TL-ER7206
\r\n
\r\n
\r\n
\r\nEspecifica\u00e7\u00f5es:
\r\n
\r\n
\r\n
\r\nHardware:
\r\n
\r\n
\r\n
\r\nProtocolos e Normas:
\r\n
\r\n- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
\r\n
\r\n- TCP\/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
\r\n
\r\n
\r\n
\r\nInterface:
\r\n
\r\n- 1 Fixed Gigabit SFP WAN Port
\r\n
\r\n- 1 Fixed Gigabit RJ45 WAN Port
\r\n
\r\n- 2 Fixed Gigabit RJ45 LAN Ports
\r\n
\r\n- 2 Changeable Gigabit RJ45 WAN\/LAN Ports
\r\n
\r\n
\r\n
\r\nNetwork Media:
\r\n
\r\n• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
\r\n
\r\nEIA\/TIA-568 100Ω STP (Max 100m)
\r\n
\r\n• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
\r\n
\r\nEIA\/TIA-568 100Ω STP (Max 100m)
\r\n
\r\n• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
\r\n
\r\n
\r\n
\r\nBot\u00e3o:
\r\n
\r\n- Button Reset
\r\n
\r\n
\r\n
\r\nFonte de alimenta\u00e7\u00e3o:
\r\n
\r\n- 100–240 V~50\/60 Hz
\r\n
\r\n
\r\n
\r\nFlash:
\r\n
\r\n- SPI 4MB + NAND 128MB
\r\n
\r\n
\r\n
\r\nDRAM:
\r\n
\r\n- 512MB
\r\n
\r\n
\r\n
\r\nLED:
\r\n
\r\n- PWR, SYS, SFP WAN, WAN (Speed, Link\/Act), LAN (Speed, Link\/Act)
\r\n
\r\n
\r\n
\r\nDimens\u00f5es (LxPxA):
\r\n
\r\n- 226 x 131 x 35 mm
\r\n
\r\n
\r\n
\r\n
\r\n
\r\nPerformance:
\r\n
\r\n
\r\n
\r\nConcurrent Session:
\r\n
\r\n- 150,000
\r\n
\r\n
\r\n
\r\nIPsec VPN Throughput:
\r\n
\r\n291.6 Mbps
\r\n
\r\n
\r\n
\r\n
\r\n
\r\nFun\u00e7\u00f5es B\u00e1sicas:
\r\n
\r\n
\r\n
\r\nWAN Connection Type:
\r\n
\r\n- Static\/Dynamic IP
\r\n
\r\n- PPPoE
\r\n
\r\n- PPTP
\r\n
\r\n- L2TP
\r\n
\r\n
\r\n
\r\nDHCP:
\r\n
\r\n- DHCP Server
\r\n
\r\n- DHCP Address Reservation
\r\n
\r\n- Multi-IP Interfaces
\r\n
\r\n- Multi-Net DHCP
\r\n
\r\n
\r\n
\r\nMAC Clone:
\r\n
\r\n- Modify WAN\/LAN MAC Address\u2020
\r\n
\r\n
\r\n
\r\nIPTV:
\r\n
\r\n- IGMP v2\/v3 Proxy
\r\n
\r\n
\r\n
\r\nIPv6:
\r\n
\r\n- Developing\u2021
\r\n
\r\n
\r\n
\r\nVLAN:
\r\n
\r\n- 802.1Q VLAN
\r\n
\r\n
\r\n
\r\n
\r\n
\r\nFun\u00e7\u00f5es Avan\u00e7adas:
\r\n
\r\n
\r\n
\r\nACL:
\r\n
\r\n- IP\/Port\/Protocol\/Domain Name Filtering
\r\n
\r\n
\r\n
\r\nAdvanced Routing:
\r\n
\r\n- Static Routing
\r\n
\r\n- Policy Routing
\r\n
\r\n
\r\n
\r\nBandwidth Control:
\r\n
\r\n- IP\/Port-based Bandwidth Control
\r\n
\r\n- Guarantee & Limited Bandwidth
\r\n
\r\n
\r\n
\r\nLoad Balance:
\r\n
\r\n- Intelligent Load Balance
\r\n
\r\n- Application Optimized Routing
\r\n
\r\n- Link Backup (Timing\u00a7, Failover)
\r\n
\r\n- Online Detection
\r\n
\r\n
\r\n
\r\nNAT:
\r\n
\r\n- One-to-One NAT\u00a7
\r\n
\r\n- Multi-Net NAT
\r\n
\r\n- Virtual Server
\r\n
\r\n- Port Triggering\u00a7
\r\n
\r\n- NAT-DMZ
\r\n
\r\n- FTP\/H.323\/SIP\/IPSec\/PPTP ALG, UPnP
\r\n
\r\n
\r\n
\r\nSecurity:
\r\n
\r\n- SPI Firewall
\r\n
\r\n- VPN Passthrough
\r\n
\r\n- FTP\/H.323\/PPTP\/SIP\/IPsec ALG
\r\n
\r\n- DoS Defence, Ping of Death
\r\n
\r\n- Local Management
\r\n
\r\n
\r\n
\r\nSession Limit:
\r\n
\r\n- IP-based Session Limit
\r\n
\r\n
\r\n
\r\n
\r\n
\r\nVPN:
\r\n
\r\n
\r\n
\r\nIPsec VPN:
\r\n
\r\n- 100 IPSec VPN Tunnels
\r\n
\r\n- LAN-to-LAN, Client-to-LAN
\r\n
\r\n- Main, Aggressive Negotiation Mode
\r\n
\r\n- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
\r\n
\r\n- IKEv1\/v2*
\r\n
\r\n- MD5, SHA1 Authentication Algorithm
\r\n
\r\n- NAT Traversal (NAT-T)
\r\n
\r\n- Dead Peer Detection (DPD)
\r\n
\r\n- Perfect Forward Secrecy (PFS)
\r\n
\r\n
\r\n
\r\nPPTP VPN:
\r\n
\r\n- PPTP VPN Server
\r\n
\r\n- 10 PPTP VPN Clients
\r\n
\r\n- 50 Tunnels
\r\n
\r\n- PPTP with MPPE Encryption
\r\n
\r\n
\r\n
\r\nL2TP VPN:
\r\n
\r\n- L2TP VPN Server
\r\n
\r\n- 10 L2TP VPN Clients
\r\n
\r\n- 50 Tunnels
\r\n
\r\n- L2TP over IPSec
\r\n
\r\n
\r\n
\r\nOpenVPN:
\r\n
\r\n- OpenVPN Server*
\r\n
\r\n- 10 OpenVPN Clients*
\r\n
\r\n- 50 OpenVPN Tunnels*
\r\n
\r\n
\r\n
\r\n
\r\n
\r\nSeguran\u00e7a:
\r\n
\r\n
\r\n
\r\nAttack Defense:
\r\n
\r\n- TCP\/UDP\/ICMP Flood Defense
\r\n
\r\n- Block TCP Scan (Stealth FIN\/Xmas\/Null)
\r\n
\r\n- Block Ping from WAN
\r\n
\r\n
\r\n
\r\nFiltering:
\r\n
\r\n- WEB Group Filtering\u00a7
\r\n
\r\n- URL Filtering
\r\n
\r\n- Web Security\u00a7
\r\n
\r\n
\r\n
\r\nARP Inspection:
\r\n
\r\n- Sending GARP Packets\u00a7
\r\n
\r\n- ARP Scanning\u00a7
\r\n
\r\n- IP-MAC Binding\u00a7
\r\n
\r\n- Access Control: Source\/Destination IP Based Access Control
\r\n
\r\n
\r\n
\r\n
\r\n
\r\nAutentica\u00e7\u00e3o:
\r\n
\r\n
\r\n
\r\nWeb Authentication:
\r\n
\r\n- No Authentication
\r\n
\r\n- Simple Password*
\r\n
\r\n- Hotspot（Local User \/ Voucher* \/ SMS* \/ Radius*）
\r\n
\r\n- External Radius Sever
\r\n
\r\n- External Portal Sever*
\r\n
\r\n- Facebook*
\r\n
\r\n
\r\n
\r\n
\r\n
\r\nGest\u00e3o:
\r\n
\r\n
\r\n
\r\nOmada App:
\r\n
\r\n- Centralized Management:
\r\n
\r\n- Omada Cloud-Based Controller
\r\n
\r\n- Omada Hardware Controller (OC300)
\r\n
\r\n- Omada Hardware Controller (OC200)
\r\n
\r\n- Omada Software Controller
\r\n
\r\n
\r\n
\r\nService:
\r\n
\r\n- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
\r\n
\r\n
\r\n
\r\nCloud Access:
\r\n
\r\n- Sim (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
\r\n
\r\n
\r\n
\r\nMaintenance:
\r\n
\r\n- Web Management Interface
\r\n
\r\n- Remote Management
\r\n
\r\n- Export & Import Configuration
\r\n
\r\n- SNMP v1\/v2c\/v3*
\r\n
\r\n- Diagnostics (Ping & Traceroute)\u00a7
\r\n
\r\n- NTP Synchronize\u00a7
\r\n
\r\n- Syslog Support
\r\n
\r\n
\r\n
\r\nManagement Features:
\r\n
\r\n- Automatic Device Discovery
\r\n
\r\n- Intelligent Network Monitoring
\r\n
\r\n- Abnormal Event Warnings
\r\n
\r\n- Unified Configuration
\r\n
\r\n- Reboot Schedule
\r\n
\r\n- Captive Portal Configuration
\r\n
\r\n- ZTP (Zero-Touch Provisioning)**
\r\n
\r\n
\r\n
\r\n
\r\n
\r\nOutros:
\r\n
\r\n
\r\n
\r\n
\r\n
\r\nCertifica\u00e7\u00f5es:
\r\n
\r\n- CE, FCC, RoHS
\r\n
\r\n
\r\n
\r\nRequisitos de Sistema:
\r\n
\r\n- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7\/8\/8.1\/10, MAC OS, NetWare, UNIX or Linux
\r\n
\r\n
\r\n
\r\nAmbiente:
\r\n
\r\n- Temperatura de opera\u00e7\u00e3o: 0–40 ℃ (32–104 ℉);
\r\n
\r\n- Temperatura de armazenamento: -40–70 ℃ (-40–158 ℉)
\r\n
\r\n- Umidade Operacional: 10–90% RH non-condensing
\r\n
\r\n- Umidade de Armazenamento: 5–90% RH non-condensing
\r\n
\r\n
\r\n
\r\n* OpenVPN requer o uso de Omada Hardware Controller, Software Controller ou Cloud-Based Controller.
\r\n
\r\n** O provisionamento Zero-Touch requer o uso do Omada Cloud-Based Controller.
\r\n
\r\n
\r\n
\r\nConte\u00fado da embalagem:
\r\n
\r\n- 1 x Roteador TP-Link TL-ER7206
\r\n
\r\n- 1 x Cabo de energia
\r\n
\r\n- 1 x Guia r\u00e1pido de instala\u00e7\u00e3o
\r\n
\r\n
\r\nGarantia
\r\n5 anos de garantia
\r\n(57 meses de garantia contratual junto ao fabricante + 3 meses referentes \u00e0 garantia legal, nos termos do artigo 26, II, do C\u00f3digo de Defesa do Consumidor)
\r\n
\r\n
\r\nPeso
\r\n1360 gramas (bruto com embalagem)"}
